WASTE WATER METER
Model
IN
Size
50~300
Applicable Water
Waste Water, Pure Water, Hot Water(90℃)
Best choice for Waste Water Measurement, Industrial water application, hospital, aniamal husbandry and smart building.
With light meter body, waste water meter is easy to mount and clean.
With light meter body, waste water meter is easy to mount and clean.
"Sewage and wastewater discharge measurement "
Accuracy
-Bi-Directional Flow Measurement
-±5% measurement accuracy
-±5% measurement accuracy
Convenience
-Remote reading LCD display
-Lightweight, easy to use and maintain
-Flexible to generate signals like Pulse, RS-485/Modbus, GPRS/3G/4G
-Pulse, RS485/Modbus, GPRS/3G/4G available
-Lightweight, easy to use and maintain
-Flexible to generate signals like Pulse, RS-485/Modbus, GPRS/3G/4G
-Pulse, RS485/Modbus, GPRS/3G/4G available
Reliability
-Acid and Alkali-resistance (pH4-10)
-Meter can be submerged
-Build-in 3 year Lithium Battery
-Real-time display of flow-rate, total consumption , forward/reverse consumption
-Meter can be submerged
-Build-in 3 year Lithium Battery
-Real-time display of flow-rate, total consumption , forward/reverse consumption
Applications
-Industrial / Commercial sections
-Suitable for Raw water, Clean water, General Waste Water.
(organic solvent is not available)
-Suitable for Raw water, Clean water, General Waste Water.
(organic solvent is not available)
| Model | IN 50 | IN 80 | IN 100 | IN 150 | IN 200 | IN 250 | IN 300 | |
|---|---|---|---|---|---|---|---|---|
| Diameter(mm/inch) | 50 / 2" | 80 / 3" | 100 / 4" | 150 / 6" | 200 / 8" | 250 / 10" | 300 / 12" | |
| Flow range (m3/h) | 1.2~30 | 2.4~60 | 3.6~90 | 8~200 | 12~300 | 20~500 | 32~800 | |
| Qp (m3/h) | 15 | 30 | 45 | 100 | 150 | 250 | 400 | |
| Qs (m3/h) | 30 | 60 | 90 | 200 | 300 | 500 | 800 | |
| Max. working pressure | 5kg/cm² | 3 kg/cm² | ||||||
| Digits Indication (m3) | 999999.999 | 9999999.99 | ||||||
| Accuracy | ±5% | |||||||
| Max. Liquid Temperature/ PH scale | 50 ℃／ph 4-10 | |||||||
| Max. working pressure | 3 kg/cm2 | |||||||
| Working Temperature | 0 ~ 50 ℃ | |||||||
| Applicable Fluids | Raw water, Clean water, General Waste Water（organic solvent is not available） | |||||||
| Body material | PVC | |||||||
| Output signal | Digital encoder; Connect to converter to generate pulse, RS-485, ModBus (RTU) and 3G/4G data transmission | |||||||
| Communications Distance | 10m (From sensor to converter) | |||||||
| Power supply | Build-in 3 year Lithium Battery | |||||||
Totalizer Logs
Users can view totalizer logs of 8 months & 8 days through the LCD display.
Monthly Totalizer Log - December
Leak Detect
When leak is detected, LCD register will display alarm sign " 💧 ",
users can also view "Leak Days" on the screen.
users can also view "Leak Days" on the screen.
Leak Alarm
Leak Days
Tamper Proof
EMS Smart Water Meter owns 3 tamper proof functions,
including O Days, H Days, and U Days.
including O Days, H Days, and U Days.
-O Days: Static Days, the number of days that no flow is detected.
-H Days: Magnetic Interference Days, the number of days detecting magnetic interference.
-U Days: Reverse Days, the number of days that reverse flow is detected.
-H Days: Magnetic Interference Days, the number of days detecting magnetic interference.
-U Days: Reverse Days, the number of days that reverse flow is detected.
Static Days (O Days)
Magnetic Interference Days (H Days)
Reverse Days (U Days)
Minimum Night Flow
To precisely detect leakge and maintain water balenace,
EMS Smart Water Meter can record the water consumption of
3 specific durations at night, including L1, L2, and L3.
EMS Smart Water Meter can record the water consumption of
3 specific durations at night, including L1, L2, and L3.
-L1: The default setting is 03:30~03:35, parameters are configurable
for pipeline leakage detection.
-L2: The default setting is 03:00~04:00, parameters are configurable
for supply network/ DMA management.
-L3: The default setting is 01:00~05:00, parameters are configurable
for maintaining water balance.
for pipeline leakage detection.
-L2: The default setting is 03:00~04:00, parameters are configurable
for supply network/ DMA management.
-L3: The default setting is 01:00~05:00, parameters are configurable
for maintaining water balance.
L1: 03:30~03:35
(Pipeline leakage)
L2: 03:00~04:00
(Supply Network/DMA)
L3: 01:00~05:00
(Water Balance)
(Supply-Consume=NRW)
Suitable Site

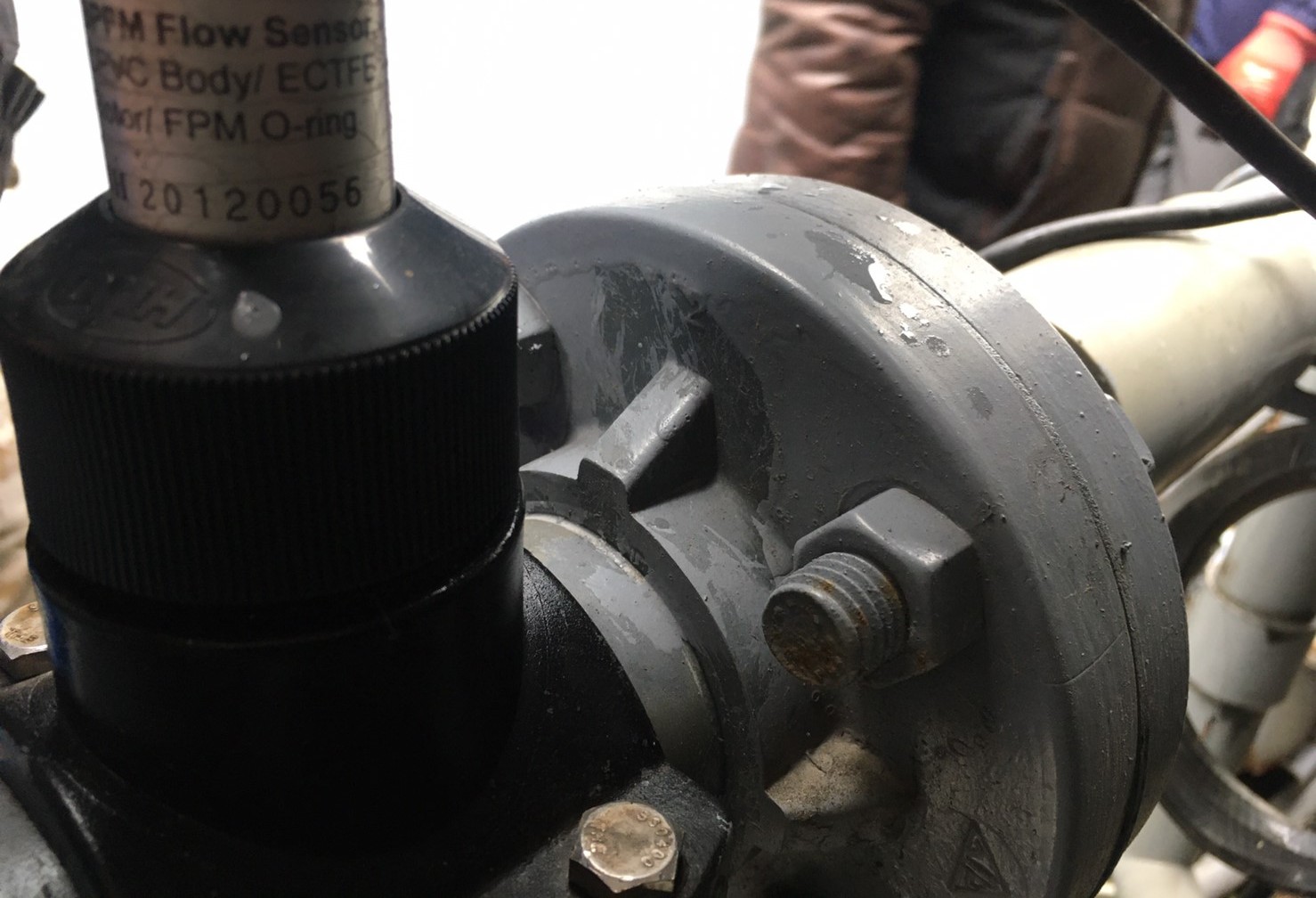

Sui Xing Freezer Manufacturer
EMS installs IN Series in Sui Xing factory for managing waste water of production process.
With light weight, IN Series is highly convenient for installation and convenience.
With light weight, IN Series is highly convenient for installation and convenience.
Changhua Train Station
IN Series is installed in Chang Hua train station to manage waste water discharge.
The monitor can be set in the instrument chamber independently, making meter reading convenient.
The monitor can be set in the instrument chamber independently, making meter reading convenient.
Irrigation Water Measurement
Irrigation water can easily clog the impeller of water meters.
With removable meter head design and extremely small impeller, IN Series works as the best choice for irrigation water measurement.
With removable meter head design and extremely small impeller, IN Series works as the best choice for irrigation water measurement.
