GPRS/3G/4G Wireless Datalogger - GTI5
Model
GTI 5
Advanced GPRS/3G/4G data logger for water network and commercial meter reading
" Advanced 3G/4G/GPRS data logger to monitor flow and pressure"
Reliability
-Acquire Flow & pressure data simultaneously
-Alarm setting of high-low flow/pressure limit
-Robust IP68 rated housing
-Build-in 5 years battery lifespan
-External battery pack, mains electricity, and solar power are available
-Alarm setting of high-low flow/pressure limit
-Robust IP68 rated housing
-Build-in 5 years battery lifespan
-External battery pack, mains electricity, and solar power are available
Convenience
-User-defined logging and transmission intervals
-Data logging and LCD display of totalizer, forward/reverse flow, flow rate, pressure, voltage,and signal strength
-Set up parameters and download historical data by IrDA reader
-Reed switch to check smart functions
-Remote parameters configuration
-Data logging and LCD display of totalizer, forward/reverse flow, flow rate, pressure, voltage,and signal strength
-Set up parameters and download historical data by IrDA reader
-Reed switch to check smart functions
-Remote parameters configuration
Applications
-District/zone flow and pressure monitoring
-Commercial and industrial monitoring
-3G/4G/GPRS communications
-Commercial and industrial monitoring
-3G/4G/GPRS communications
| PHYSICAL DESIGN | ||||||
|---|---|---|---|---|---|---|
| Dimensions(H*W*L) | 258 x 90 x 77.7 mm | |||||
| Weight | 870 g | |||||
| Operating temperature | -25℃ ~70℃ | |||||
| Enclosure class | IP68 | |||||
| POWER SUPPLY | ||||||
| Built-in battery | 5 years lithium battery (daily transmission) | |||||
| External power | 1~3 years external battery pack Mains electricity Solar power | |||||
| CONNECTIONS | ||||||
| Flow | EMS digital water meter 2 sets Pulse input | |||||
| Pressure | Build-in pressure gauge | |||||
| COMMUNICATIONS | ||||||
| 2G | GSM: 850/ 900/ 1800/ 1900 MHz | |||||
| 3G | UMTS: B1/B5/B8 | |||||
| 4G | FDD LTE: B1/B3/B5/B7/B8/B20 | |||||
| SIM | Standard SIM (Mini SIM) | |||||
| External antenna | 3 meters | |||||
| CONFIGURATION | ||||||
| Site | Configured by IrDA reader | |||||
| Remote | Wireless configuration by 3G/4G/GPRS | |||||
| LOGGING CAPACITY & TRANSMISSION FREQUENCY | ||||||
| Logging | Flow up to 800,000 Pressure up to 2,000,000 Flow & Pressure up to 570,000 | |||||
| Transmission | Data logging frequency from 1 Sec. to 1440 Mins. Data transmission frequency from 10 Mins. to 1440 Mins. | |||||
2017 Taiwan Excellence
Further Information
Further Information
Suitable Site
Manhole
GTI 5 is available for installation in manholes with IP68 protection.
Furthermore, the signal strength can be guaranteed by communication test with management software.
Furthermore, the signal strength can be guaranteed by communication test with management software.

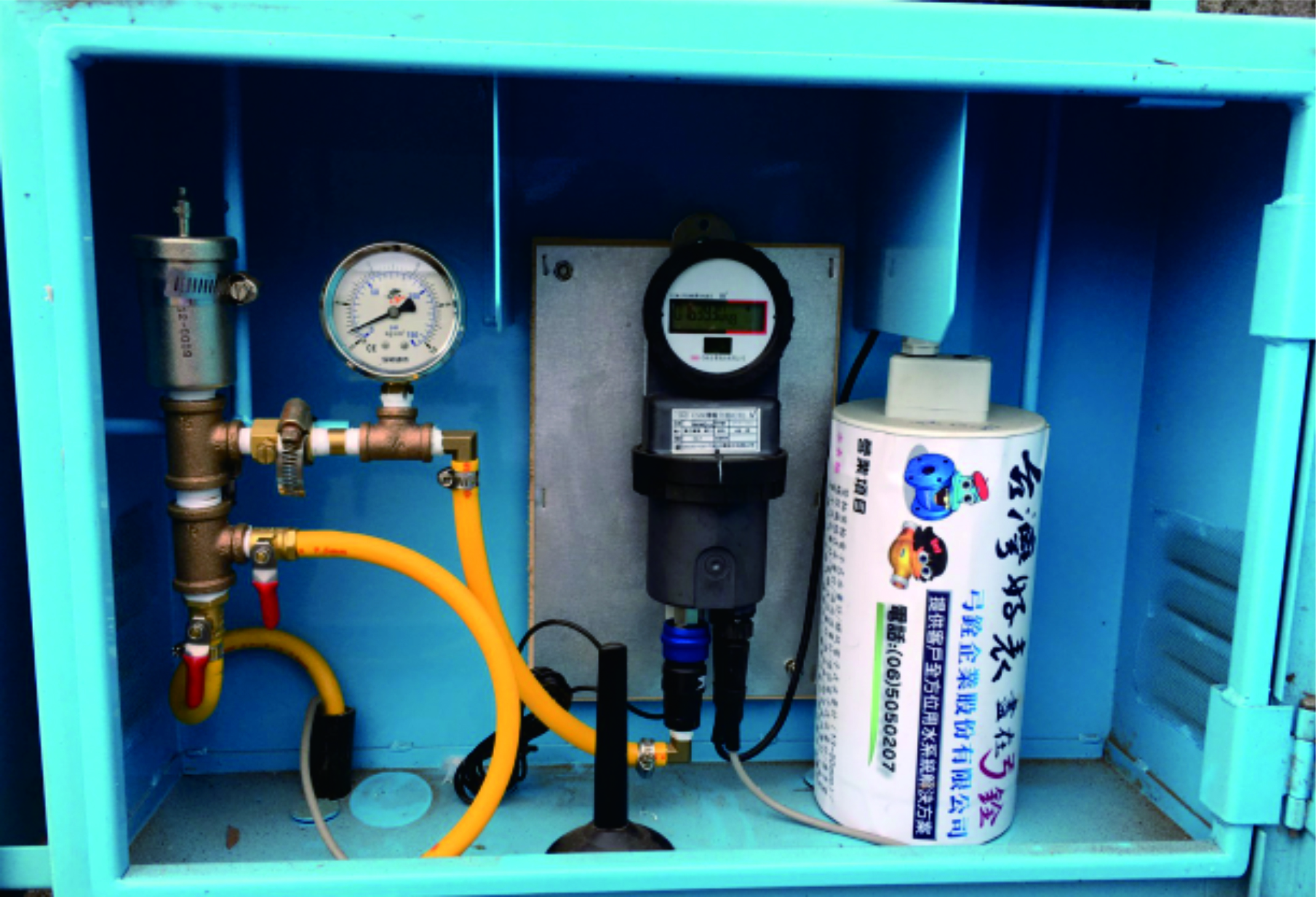

Instrument Chamber
GTI 5 is allowed to connect to external battery packs for 1~3 years lifespan.
To protect battery from climate impacts, GTI 5 can be set in the instrument chamber.
To protect battery from climate impacts, GTI 5 can be set in the instrument chamber.

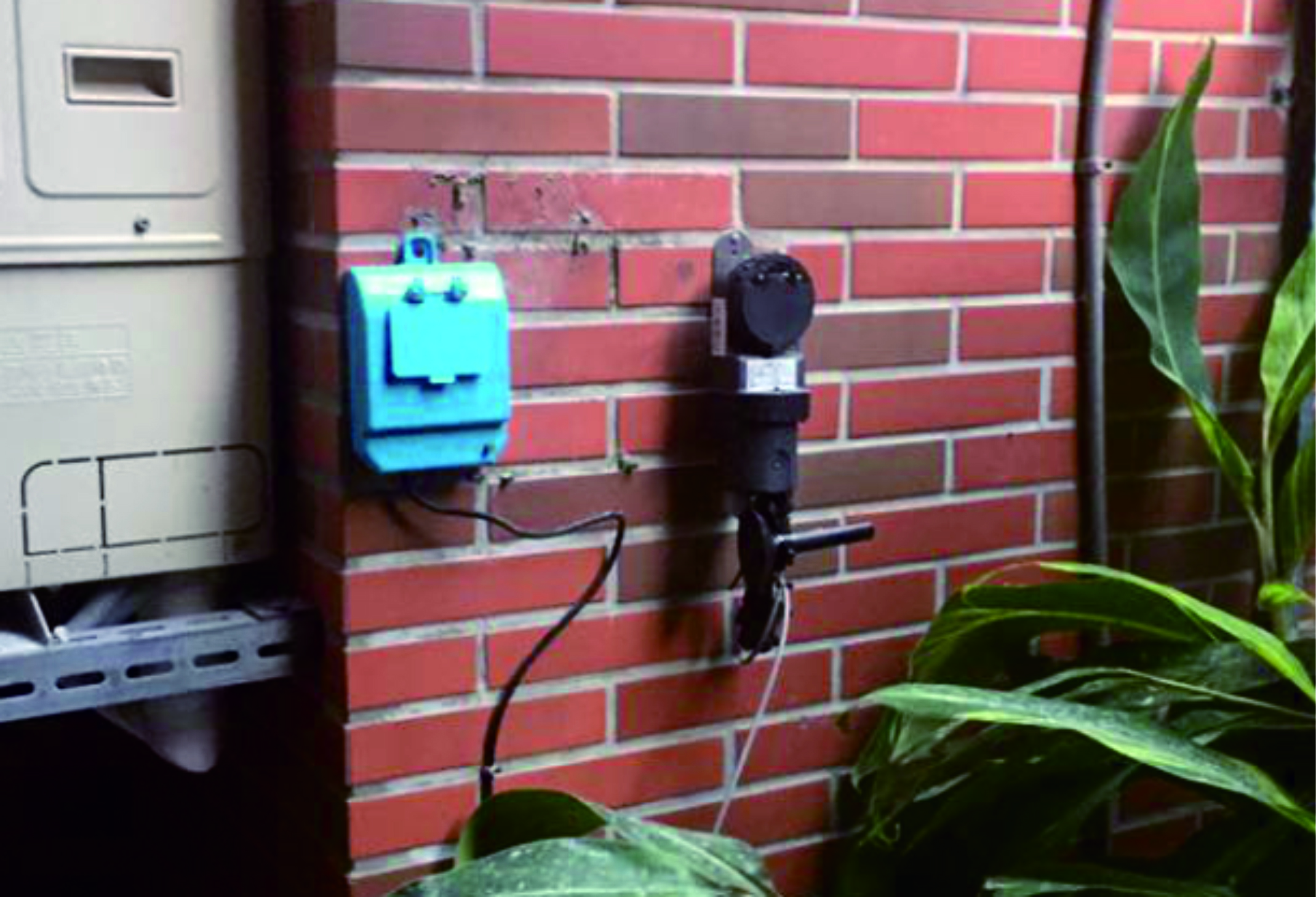

Wall Mounted
With light weight and small volume, GTI 5 is allowed to be mounted on the wall.
Furthermore, it can suit multiple outdoor environments with IP68 protection.
Furthermore, it can suit multiple outdoor environments with IP68 protection.
