CLAMP-ON ULTRASONIC SMART FLOW METER
Model
US
Size
50-800 mm
Applicable Water
Raw Water, Tap Water, Pure Water
With the clamp-on design, it is not necessary to shut down flow or cut the pipe for installation.
" The widest application scope with the easist installation process"
Accuracy
-Time transit measurement principle
-Bi-directional flow measurement
-No flow disturbance and pressure loss
-No moving parts, No strainer required
-Non-invasive: no flow disturbance, no pressure loss, no process interuption, no water contact
-Bi-directional flow measurement
-No flow disturbance and pressure loss
-No moving parts, No strainer required
-Non-invasive: no flow disturbance, no pressure loss, no process interuption, no water contact
Convenience
-Direct reading LCD display
-Portable, Light weight, and easy to use
-Easy to install clamp-on sensors with no process interruption
-Pulse, RS-485/ Modbus, 4-20mA output
-Real time display of flow-rate, total accumulation, and forward/backward accumulation
-Portable, Light weight, and easy to use
-Easy to install clamp-on sensors with no process interruption
-Pulse, RS-485/ Modbus, 4-20mA output
-Real time display of flow-rate, total accumulation, and forward/backward accumulation
Reliability
-Tranducer IP 68 protection, converter IP 65
-Data protection with lockable keypad offline data protection
-Offline data protection for last accumulation data
-Light indication for measurement status
-Error messages for no signal, weak signal, empty pipe, incorrect set up, and communication error, etc.
-Data protection with lockable keypad offline data protection
-Offline data protection for last accumulation data
-Light indication for measurement status
-Error messages for no signal, weak signal, empty pipe, incorrect set up, and communication error, etc.
Application
-Industrial / Commercial / Utility
-Water network management
-Pump flow measurement
-Flow survey at site
-Sensor for ambient temperature up to 60 °C
-Transducer for ambient temperature up to 90 °C
-Water network management
-Pump flow measurement
-Flow survey at site
-Sensor for ambient temperature up to 60 °C
-Transducer for ambient temperature up to 90 °C
| Model | US | |||||
|---|---|---|---|---|---|---|
| Diameter (mm/inch) | DN50(2”)~DN800(32”) | |||||
| Ambient Temperature | Converter : -20 to 60 °C Transducer : -30 to 90 °C | |||||
| Installation | Clamp-on | |||||
| Measure Principle | Time Transit | |||||
| Flow range | ± 0.2 m/s ~ 12 m/s | |||||
| Accuracy | ± 2% | |||||
| Response time | < 1 Sec. | |||||
| Resolution | 0.0001 m/s | |||||
| Digital Output | RS-485(Modbus RTU), Pulse | |||||
| Analogue Output | 4-20mA | |||||
| Communications Distance | 10 m | |||||
| Unit | Totalizer: L, gal, igl, mgl, cf, by, ob, m3(default) | |||||
| Flow raye: m3 / sec, min, hour, day, hr(default) | ||||||
| Protection Degree | Transducer IP68 Converter IP65 | |||||
| Power supply | 12~30 VDC, Power adapter AC 100 ~ 240V | |||||
| Display | English, 128 x 64 LCD Display | |||||
| Operation | 4 buttons | |||||
| Safety | Lockable keypad, offline data protection | |||||
| Case | ABS | |||||
| Dimension | 145 x 91 x 35 (mm) | |||||
| Pipe material | Cast iron, Stainless steel, Carbon steel, Aluminum, Brass, Glass Fiber, PVC, PTFE, Rubber, other | |||||
| Lining material | No linear, PTFE, Titanium, Enamel, Plastic, PE, other | |||||
Suitable Site

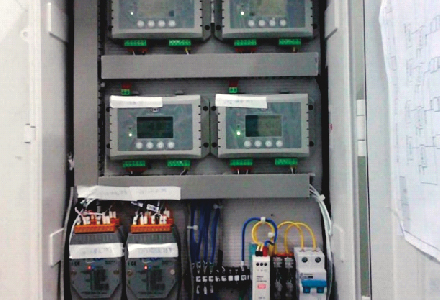

Taiwan Science Park: ITRI
Installing US Series for water management of production processes.
Improve efficiency of water usage and conduct water balance analysis with accurate sub-metering.
Improve efficiency of water usage and conduct water balance analysis with accurate sub-metering.

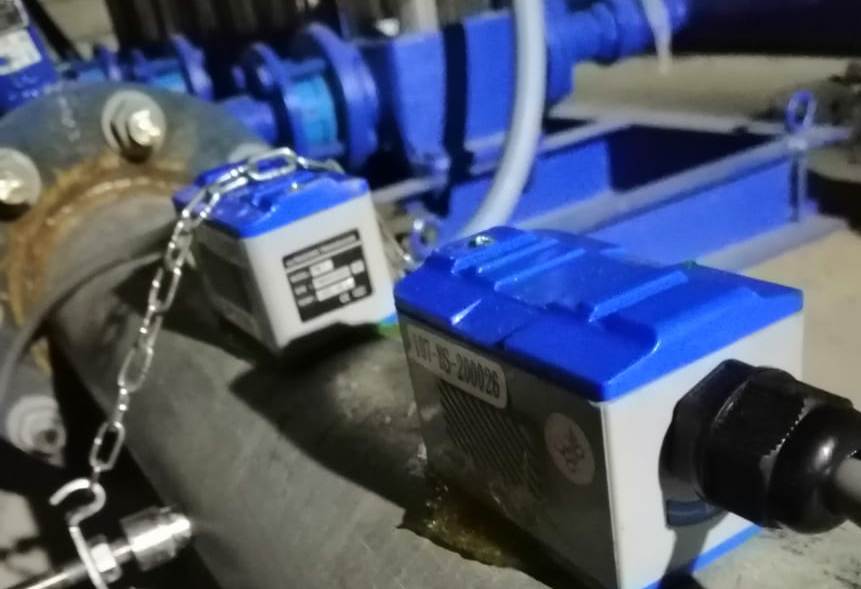

Philippine Stairs Drilling Factory
US Series can meet needs of industrial application in the international market for assisting manufacturers to enhance the water management efficiency and monitor the water consumption effectively.
China Steel- Cooling Water Metering
With time transit measurement principle, US Series assist China Steel to management cooling water consumption precisely. Furthermore, users don't need to shut down the flow and cut any pipe for US Series installation.
