RS-485/Modbus Transfer Interface
Model
RMT
Advanced RS-485/Modbus signal transfer for data transmission and sub-metering solution.
" Flexible RS-485/Modbus applictions to monitor water usage"
Features
-User-defined transmission intervals
-Data transmission of totalizer, forward/reverse flow, and smart functions
-Submetering application available (RMTs)
-Connect Max. 40 water metes (RMTs)
-Robust IP68 rated housing
-Data transmission of totalizer, forward/reverse flow, and smart functions
-Submetering application available (RMTs)
-Connect Max. 40 water metes (RMTs)
-Robust IP68 rated housing
Applications
-High-rise building water usage monitoring
-Commercial and industrial water usage monitoring
-Connect to converter to send data by 3G/4G/GPRS
-Commercial and industrial water usage monitoring
-Connect to converter to send data by 3G/4G/GPRS
| PHYSICAL DESIGN | ||||||
|---|---|---|---|---|---|---|
| Case material | ABS | |||||
| Dimensions(H*W*L) | 54 mm x 88mm x 78mm | |||||
| Weight | 300 g | |||||
| Operating temperature | -25℃ ~70℃ | |||||
| Enclosure class | IP68 | |||||
| Mains electricity | Vin=+9~+24VDC (above 100mA) | |||||
| CONNECTIONS | ||||||
| Digital signal | EMS digital water meter | |||||
| COMMUNICATIONS | ||||||
| Communication Distance | From RMT to water meter: 100 m | |||||
| From RMT to system: 1000 m | ||||||
| Communication Wire | EMS water meter input: 22 AWG 3-core shielded wire | |||||
| RS-485/Modbus output: 22~26 AWG 4-core insulated twisted pair wire | ||||||
| Data Format | 1 Stop Bit, No Parity, 8 Data Bits | |||||
| Baud Rate | 4800, 9600, 19200, 38400, 57600, 115200 bps | |||||
| CONFIGURATION | ||||||
| Wired configuration | RS-485-USB cable connection to PC | |||||
Suitable Site

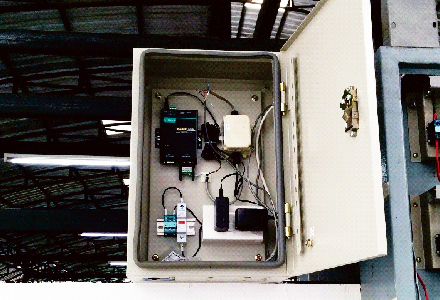

Thailand Nurse Dormitory inside Public Hospital Area
Totally installing 70 Multi-jet water meters with 3 RMTs (Modbus) for smart water metering.

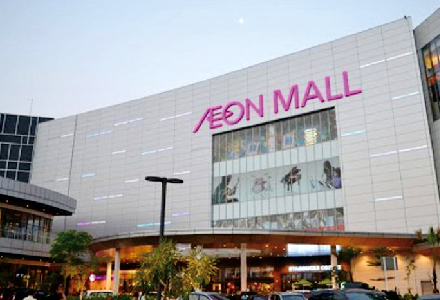

Indonesia AEON MALL
Totally installing 300 smart water meters with RMTs in Indonesia AEON mall.
